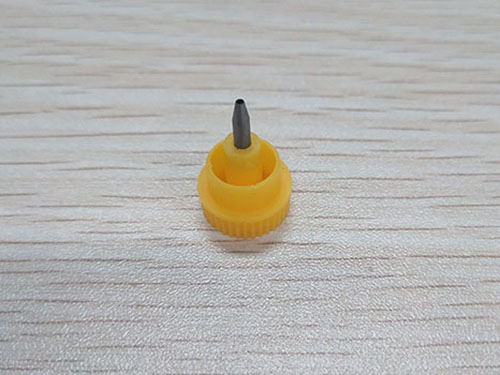

Dispensing machine nozzle is to pre-point a special glue on the position of the pcb board above the need to patch, to fix the patch element, after curing and then through wave soldering. Dispensing is carried out automatically according to the program, its working principle adopts the form of pneumatic auxiliary glue valve control, to reach the ideal degree. The application industries are mainly electronics industry, lighting industry, home appliances industry and other fields. The automatic operation form improves the production efficiency and product quality.

Dispensing machine nozzle classification of glue control equipment in the industry is called a lot, dispensing machine nozzle, glue filling machine, glue coating machine, glue machine and so on. According to our company's knowledge of the industry and years of industry experience, referring to the summary of the industry in Europe, the United States and Japan, this kind of equipment is summed up as the nozzle of the dispensing machine, and is divided into three categories:

1. Single component dispensing machine nozzle

Dispensing controller

Desktop dispensing machine nozzle

Floor dispensing machine nozzle

2. Two-component dispensing machine nozzle

Semi-automatic two-component dispensing machine nozzle

Automatic two-component dispensing machine nozzle

3. Non-standard dispensing machine nozzle

common

Including automatic dispensing machine nozzle, quantitative dispensing machine nozzle, semi-automatic dispensing machine nozzle, digital display dispensing machine nozzle, precision dispensing machine nozzle, etc.

2, desktop dispensing machine nozzle

includes desktop dispensing machine nozzle, desktop three-axis dispensing machine nozzle, desktop four-axis dispensing machine nozzle, or desktop automatic dispensing machine nozzle, 3-axis assembly line dispensing machine nozzle, multi-nozzle dispensing machine nozzle, multi-orifice dispensing machine nozzle, circular dispensing machine nozzle, horn dispensing machine nozzle, mobile phone button dispensing machine nozzle, cabinet dispensing machine nozzle, etc.

3, semi-automatic dispensing machine nozzle

Including microcomputer precision dispensing machine nozzle, led digital display dispensing machine nozzle, automatic back suction dispensing machine nozzle, extraction cycle dispensing machine nozzle.

Automatic

1, floor type double liquid dispensing machine nozzle.

2, spraying automatic dispensing machine nozzle (the nozzle of the dispensing machine adopts spray valve, on-line operation, mainly used for pcb board three anti-paint spraying, dust, moisture-proof, insulation).

3, automatic conductive glue dispensing machine nozzle (the dispensing machine nozzle and ordinary dispensing machine nozzle difference is that the point of the conductive glue section is triangular distribution, mainly used for electromagnetic shielding dispensing).

4, phosphor jet dispensing machine nozzle (this dispensing machine nozzle is mainly used in led industry).

Double Y-axis

This kind of dispensing machine nozzle includes two moving platforms, the traditional dispensing machine nozzle generally only contains a moving platform. Each movement platform can be equipped with more than 5 dispensing heads, to achieve a leap-forward improvement in dispensing efficiency. Suitable for lcd, liquid crystal module precision dispensing, in the mobile phone LCD screen, pda and other LCD screen field the most widely used.

Non-standard class

That is, according to some special requirements of customer product process, customized separately, this kind of dispensing machine nozzle is often high development cost.

uv dispensing machine nozzle

①ultimusv dispensing machine nozzle introduction:

replaces the operator's guesswork by adjusting the amount of fluid applied to the component using air pressure and a microprocessor-based timing device. efd's pneumatic dispensing system eliminates the variability in the traditional dispensing process.

ultimusv dispensing machine nozzle advantages include:

High productivity and pass rate.

Powerful process control.

Excellent product quality, reliability and elegant appearance.

Lower rework rate and fewer defective products.

No waste or confusion.

simplifies training for new staff.

ultimusv high-precision dispensing machine nozzle will promote the accuracy and consistency of dispensing effect to a new level, for easy viscosity adhesives can also achieve accurate control, such as:

two-component epoxy adhesive whose viscosity varies with time.

Viscosity changes due to temperature of uv curable adhesive, etc.

③ultimusv dispensing machine nozzle characteristics and advantages:

1, no matter the viscosity of the adhesive changes or not, the glue point is always constant.

2, electronic control dispensing time, air pressure and vacuum, to ensure a highly accurate dispensing effect.

3, programming control pressure can be adjusted automatically with the fluid viscosity changes.

4, the unique "setitandforgetit" technology makes the dispensing operation easier, each fluid dispensing only needs to be programmed once.

5, at the same time display all dispensing parameters, the process control is greatly simplified.

led dispensing machine nozzle

led special equipment, dedicated to the production of white led phosphor dispensing.

Today, the nozzle of the led dispensing machine can be roughly divided into two categories: one is the pressure type, the other is the measurement type.

Due to the amount of led phosphor glue requirements are very accurate, and the air pressure will vary with the size of the air pressure, the amount of glue will change greatly, so the air pressure dispensing machine nozzle can not hide the demand of the led industry, so it is not called the led dispensing machine nozzle. led industry is basically used in metering, his glue accuracy can reach one in ten thousand, can meet the led phosphor dispensing, this is called the real led dispensing machine nozzle.
